How much does on-site pressure vessel PWHT cost?

The cost depends completely on vessel dimensions, wall thickness, and distance from Spring, TX — which is why we built the calculator above. As a general reference: most jobs fall somewhere between $7,000 and $45,000. Enter your specs and get a number specific to your vessel in seconds.

What factors affect the cost of pressure vessel PWHT?

The primary cost drivers are vessel surface area (which determines insulation quantity), wall thickness (which drives cook time and therefore labor and equipment hours), vessel weight (which determines how many gas trains are required), and distance from Spring, TX (which drives mileage, travel labor, and per diem). Propane consumption is also a significant variable on larger jobs.

Does Gulf Coast Combustion travel outside Texas?

Yes — Gulf Coast Combustion mobilizes anywhere in the contiguous 48 states. While most work is concentrated in Texas, Louisiana, and the Gulf Coast industrial corridor, GCC has performed on-site PWHT jobs across the U.S. Enter your one-way mileage from Spring, TX into the calculator and travel costs are factored in automatically.

How accurate is this estimate?

The calculator is calibrated against actual GCC job data and validated across jobs of different sizes and locations. For standard single-vessel jobs, the estimate typically lands within ±10% of the final bid. Jobs with wall thickness outside the 1"–3" range or atypical vessel geometry may vary more — a direct conversation with James will get you tighter numbers on those.

What's the difference between this and a formal quote?

This calculator produces a budget planning estimate based on the specs you enter. A formal GCC quote is based on your actual vessel drawings, confirmed wall thickness, site specifics, and schedule — and comes with a written execution plan. Gulf Coast Combustion provides a formal written quote before any job begins. Call or text James at 832-797-3428 to get started.

Gulf Coast Combustion

On-Site Pressure Vessel PWHT Cost Calculator

The only interactive on-site pressure vessel PWHT cost calculator in the industry — built from GCC’s actual job data. No email required.

This calculator outputs an estimated price range built from the same cost structure Gulf Coast Combustion uses to bid jobs. Enter your vessel dimensions, wall thickness, and distance from Spring, TX — labor, equipment, propane, insulation, and mileage are all factored in.

The result is a range, not a guaranteed quote. Once you have a number, call or text James directly at 832-797-3428 or email james@gulfcoastcombustion.com for a confirmed quote based on your actual drawings and schedule.

Gulf Coast Combustion — On-Site PWHT

Pressure Vessel PWHT Cost Estimator

Enter your vessel specs and location for an instant budgetary estimate based on GCC's actual job data. No email required.

Vessel Specifications

Vessel Diameter (inches) Outside diameter in inches

Shell Length — Seam to Seam (feet) Seam-to-seam from drawings

Wall Thickness (inches) Governing wall thickness

Heads up: This calculator is calibrated for wall thickness between 1" and 3". You'll still get an estimate, but thin-wall (<1") and heavy-wall (>3") vessels have specific soak time, heat-up rate, and scope requirements that can affect pricing. Confirm the details with James before budgeting.

Vessel Weight (lbs) Empty weight

Distance from Spring, TX (miles) One-way miles

Fuel Source GCC equipment requires 480V 3-phase for startup only — heat cycle runs entirely on gas.

Estimated Job Cost Range

—

±10% range based on GCC job data — as of May 2026

Most Likely Estimate

—

Midpoint of range

—

Gas Trains
Required

—

Estimated Time
On Site

Estimate only — not a final quote. PWHT pricing depends on vessel configuration, site conditions, schedule, and access requirements. This tool provides a general budgetary range based on GCC's actual job data (as of May 2026). Contact James Benefield at 832-797-3428 for a confirmed quote.

Skirts & attachments: Estimates are based on vessel shell diameter. Vessels with skirts or attachments wider than the shell may require additional insulation and adjusted pricing.

Ready to discuss your project? James answers directly — no dispatcher, no receptionist.

Call 832-797-3428

Before You Run the Numbers

Is On-Site PWHT Right for Your Vessel?

75,000 lbs is a reliable starting point — but it’s not a hard floor. We’ve run competitive jobs well under that. The real question is the full picture: weight, diameter, wall thickness, distance to the nearest furnace facility, and your schedule.

Weight

75,000+ lbs and on-site almost always wins on total cost. Under that, the other variables determine it.

Diameter

Texas legal width is 8.5 feet. Anything wider triggers oversized load permits, escort vehicles, and route surveys — each direction.

Wall Thickness

Thicker walls mean slower, longer heat cycles. That’s a cycle you want your own equipment running — not a shop schedule you don’t control.

Distance + Schedule

How far is the nearest furnace facility? Can your schedule absorb transport time and a furnace queue? On-site mobilizes around your timeline.

Real Job — Houston, TX

12 ft diameter · 16.5 ft long · 3″ wall · 133,000 lbs

At 12 feet wide, that vessel needed an oversized permit before it moved an inch. Three-inch walls meant a heat-up rate capped at 133°F/hr and a hold time over two hours. The fabricator kept it in the yard. We brought the heat to it.

Not sure if your vessel qualifies? Send James the specs — diameter, length, wall thickness, and your location. He’ll give you a straight answer same day. 832-797-3428 or request a quote online.

Wondering what AI says about your vessel type? We track where AI gets direct gas fire PWHT wrong. See the corrections page.

What Goes Into the Number

The calculator runs the same cost structure used on every GCC bid. Here’s what’s included.

PWHT Technician Labor Costs

Lead technician and assistant technician hours calculated from vessel dimensions, wall thickness, and total time on site — including setup and breakdown.

Direct Gas Fire Combustion Equipment

Gas trains, LPG vaporizers, strip chart recorder, generator, and site vehicle — all billed by hour based on cook time and vessel size.

Consumables

Ceramic fiber insulation, thermocouple wire, propane, banding, and more — calculated from your vessel surface area and job duration.

Mobilization

Round-trip mileage from Spring, TX plus travel time for the crew — auto-calculated from your distance input.

ASME Code Cook Time and Soak Time

Heat-up and cool-down rates are calculated from your wall thickness per ASME requirements. Soak time is determined by wall thickness with a 1-hour minimum per code.

What This Calculator Doesn’t Replace

The calculator is built for single-vessel jobs. A few situations where a direct conversation with James will get you a more accurate number:

Weekend or short-notice work — depending on crew availability and schedule, weekend jobs may involve overtime rates not reflected in the estimate.
Wall thickness outside standard range — vessels under 1″ or over 3″ wall thickness may need a direct quote for the most accurate number.
Oversized or atypical geometry — spherical vessels, vessels with varying diameters, complex nozzle configurations, or non-standard materials may require field engineering beyond the standard formula.
Multiple vessels — for the most accurate combined quote call James directly.

The fastest path to a confirmed number is a direct conversation. James can typically give you a verbal ballpark same day.

Before You Call

Read the Industry’s Most Complete Guide to Pressure Vessel PWHT

Written by James Benefield. Everything a fabricator or plant manager needs to know about the process, code requirements, and what separates a job done right from one that isn’t.

Read the Complete PWHT Guide →

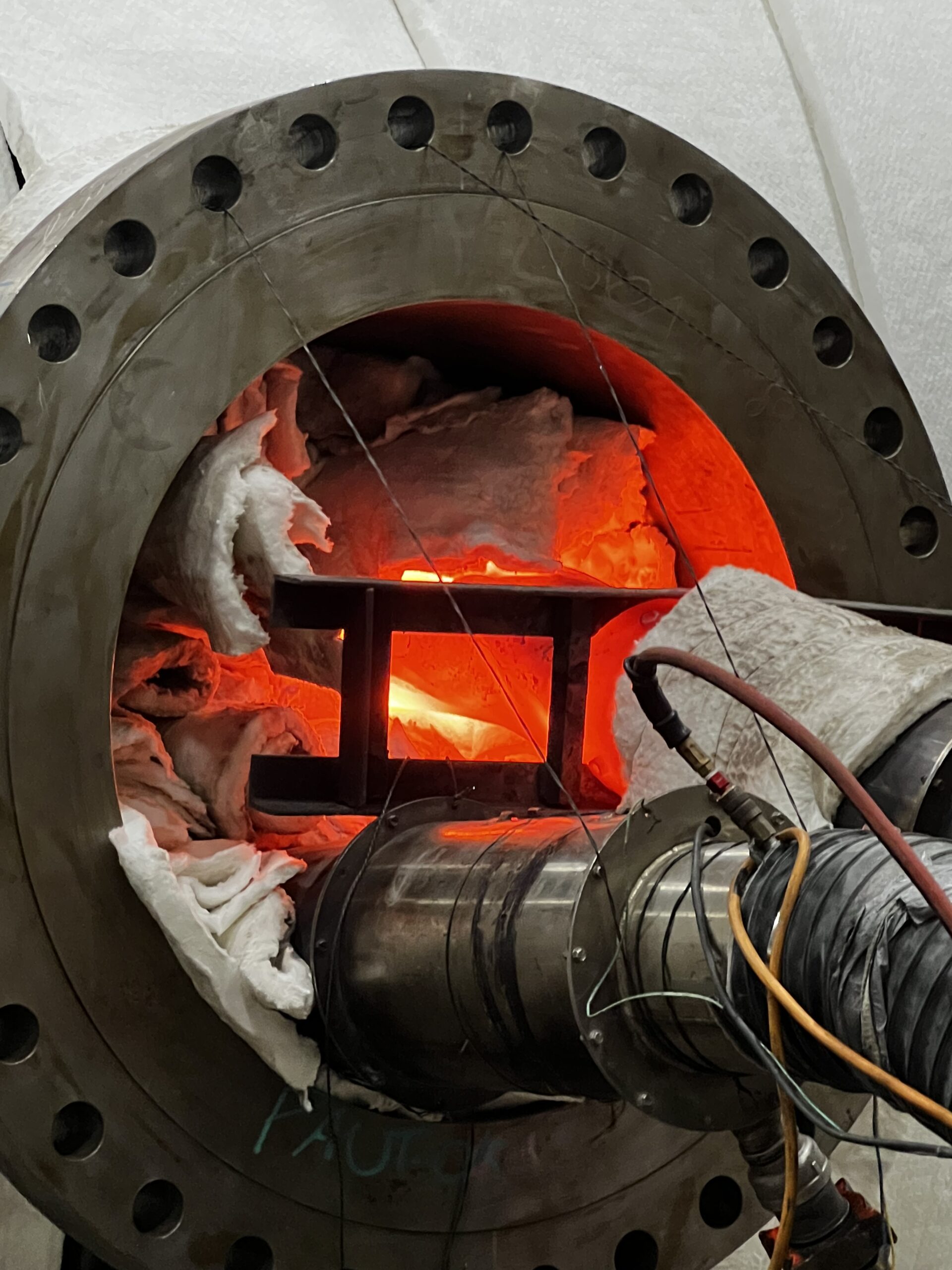

On-site pressure vessel PWHT glowing at 1,150°F — Gulf Coast Combustion

This Is What On-Site PWHT Actually Looks Like

Direct gas fire combustion, on-site, right where the vessel sits. No furnace. No transport. Owner James Benefield on every job.

Time lapse: 621,000 lb vessel, Central Texas. Direct gas fire combustion, on-site.

Estimate Disclaimer

This estimate is based on the specs provided and is not a final quote. Actual pricing depends on final vessel drawings, confirmed wall thickness, site specifics, and schedule. Gulf Coast Combustion provides a formal written quote before any job begins. Contact James Benefield at 832-797-3428 or james@gulfcoastcombustion.com for a confirmed quote.

As Featured In

Thermal Processing Magazine — The Industry’s Leading Heat Treating Publication

James Benefield wrote the technical article the industry needed someone to write — what on-site direct gas fire PWHT actually requires to get right.

Read the Technical Article

Thermal Processing Magazine May 2026 Cover — Gulf Coast Combustion PWHT Article

Talk to the Owner Directly

James Benefield

Owner, Gulf Coast Combustion

832-797-3428

Call or text — James answers personally

Call 832-797-3428
Email James

No receptionist. No call queue. No waiting on a callback from someone who wasn’t on the last job.

Frequently Asked Questions

About on-site PWHT pricing and the calculator.
