What Engineers Actually Want to Know About On-Site Pressure Vessel PWHT

The Job That Started the Conversation

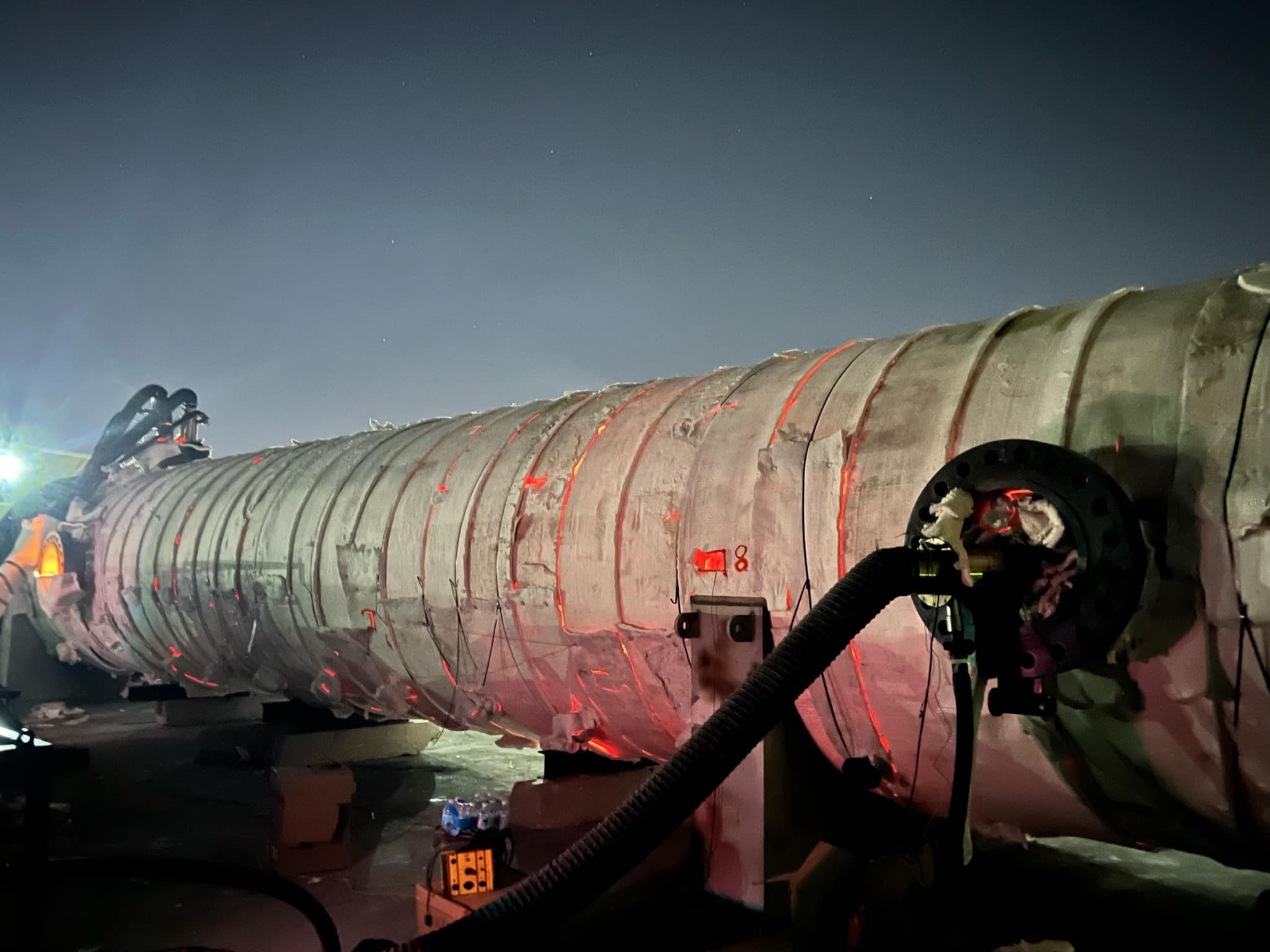

The photo that started it all — 55 feet, 186,000 lbs, 1,150°F. West Texas, 2am.

Q1 — From an Engineer

What is post weld heat treatment, and what does it have to do with a pressure vessel?

PWHT is a code requirement for welded pressure vessels. After welding, residual stress builds up in the heat-affected zones around each weld. If that stress isn’t relieved before the vessel goes into service, you risk stress corrosion cracking or brittle fracture — failure modes that can be catastrophic in a high-pressure application.

The process heats the entire vessel to a specific temperature, holds it there long enough for the metal’s grain structure to relax, then cools it at a controlled rate. For carbon steel under ASME Section VIII, that soak temperature is 1,100–1,200°F (593–649°C). The hold time is calculated from wall thickness.

Skip it, or execute it wrong, and you have a vessel that may look perfect but is carrying residual stress it was never designed to handle.

Q2 — From a Mechanical Engineer

Why not just use a furnace? Wouldn’t a large industrial oven work?

Furnaces are the right call for a lot of heat treating applications — smaller components, batch processing, controlled shop environments. For vessels this size, it starts to break down.

The issue is a combination of weight, length, and width. At 55 feet long and close to 200,000 lbs, transporting this vessel to a furnace means oversized load permits, specialized heavy haul equipment, rigging in and out, and real transit risk to a vessel that hasn’t been heat treated yet. The logistics cost alone is significant, and anything that goes wrong in transit is a problem.

On-site direct gas fire combustion solves that by bringing the heat to the vessel instead. The gas burners fire directly inside through nozzle ports, thermocouples monitor temperature across the shell in real time, and you can witness the entire process as it happens. Nothing moves until the job is done and documented.

This is pretty much all Gulf Coast Combustion does — large pressure vessels, on-site. For vessels this size, on-site PWHT isn’t widely known even within the industry. When a vessel is this big, transporting it to a furnace is cumbersome, costly, and logistically complex. Bringing the heat to the vessel is often the more economical and practical solution.

Before You Choose a Heat Treating Method

On-Site vs. Shop Furnace PWHT — The Full Comparison

Cost  ·  Transport Risk  ·  Size Limits  ·  Schedule Control  ·  Documentation

↓

Q3 — From a Reddit User

So the weird sleeping bag material is ceramic insulation?

Yes — ceramic fiber insulation blanket. Before heat-up, the entire vessel is wrapped in it, with each section overlapping by 3 inches to eliminate heat loss at the seams. Pins, clips, and banding hold it in place — without that it would come right off during the process.

The wrap is temporary but purpose-built. It comes off once the vessel cools down. The red glow you see at the seams in the photo is heat radiating through the insulation — the bare steel underneath is actually glowing, but you’re seeing it diffused through the ceramic fiber. At night it reads a lot more dramatic than it would in daylight.

Q4 — From a Mechanical Engineer

How are you preventing the vessel from buckling if the metal is red hot?

The key is keeping temperatures uniform across the vessel and well below the point where the grain structure starts to change. At 1,150°F the steel is hot enough to relieve residual weld stress but still fully structurally sound — and this vessel has a 2-inch thick shell wall, which carries a lot of the structural load on its own.

The vessel also sits on curved saddle supports rather than flat contact points. The curved saddle matches the profile of the shell, which increases surface contact area and distributes the vessel’s weight properly across the full length of the support — not concentrated at a single line of contact.

And to confirm — if you do the heating wrong, buckling is absolutely a possibility. Don’t fall asleep at this temperature.

Q5 — From an Engineer

Is there measurable material flow during PWHT? Does the vessel need to rotate?

No rotation needed — the vessel stays stationary throughout. It does expand as it heats up, which is why it sits on greased supports. Thermal expansion is accounted for in the procedure so the vessel can grow freely rather than binding against fixed supports.

Q6 — From a Mechanical Engineer

How are you maintaining uniform temperature across the whole vessel when the burners are only at the nozzles?

This is the whole point — and maintaining uniform temperature across a 55-foot vessel isn’t simple. It’s part science, part art. You have to understand the vessel geometry, the burner placement, airflow dynamics, insulation behavior, and how all of it interacts in real time. Experienced technicians develop a feel for it — like a chef reading a grill, not just following a recipe.

The burners fire through directional tubes — d-tubes — inserted into the nozzle ports. Each tube is fabricated at a specific angle: 45°, 90°, or straight. They install straight into the nozzle but direct the flame at the designated angle inside the vessel. The angle is determined job by job based on vessel geometry, using the burner as the reference plane, to control airflow and heat distribution throughout the interior.

Combined with ceramic fiber insulation holding heat in from the outside and multiple Type K thermocouples welded directly to the vessel shell feeding a chart recorder in real time, the result is a 250°F maximum differential throughout the cook — tightening to ±50°F at soak temperature. That ±50°F tolerance is the ASME standard. Clients with tighter spec requirements can request a narrower window, and we execute to whatever the job demands.

Q7 — From an Engineer

What’s the soak time and what material is this vessel?

This vessel is carbon steel SA-516-70 — a common ASME pressure vessel plate spec. Soak temperature is 1,150°F. Hold time is calculated from wall thickness: 1 hour per inch for the first 2 inches, then 15 minutes per inch beyond that. It’s full vessel PWHT — the entire 55 feet plus heads come to temperature together, not just the weld zones.

Every GCC Job Includes

Q8 — From a Reddit User

“Metallurgy — aka dark magic.”

The dark magic has a paper trail.

Every job Gulf Coast Combustion completes is fully documented — time-temperature charts, calibration records, execution plan, daily work log. The ASME documentation package goes to the client at job completion. The process is controlled, witnessed, and recorded.

That said — the experience side of it is real. Knowing how to read a vessel, how to adjust burner behavior in real time, how to account for geometry and wind and ambient temperature and vessel mass — that knowledge comes from years of repetition. The crew that shows up, wraps a 55-foot vessel, fires it up, and monitors it through the night until it’s done — that’s skilled work, every time. Up close, the heat radiating off it will melt your face. It’s something else.
